Click inside a room and Takeoff Studio traces it to the inside face of the walls - one room or a whole floor in one go. On drawings exported from CAD, Auto walls finds the walls and measures them along their centre lines, with the doors and windows counted.
Set the scale from a dimension you trust, or read it from the title block. One-click area and Auto walls both need the page calibrated.
Choose Room on the toolbar (or One-click area in the command palette, Ctrl+K) and click inside a room. It's traced to the inside face of the walls and shown as a preview. Shift-click more rooms to add several at once.
If the fill runs out through a doorway or a gap in the walls it turns red and isn't added: raise Close gaps and click again. Wall to wall measures to the walls whatever is drawn in the room - furniture, kitchen units, baths and door swings.
Click inside a preview or press Enter. Tick Make rooms to add them as numbered rooms, ready for heights and finishes. They're ordinary area markups you can edit, and each Add is one undo step.

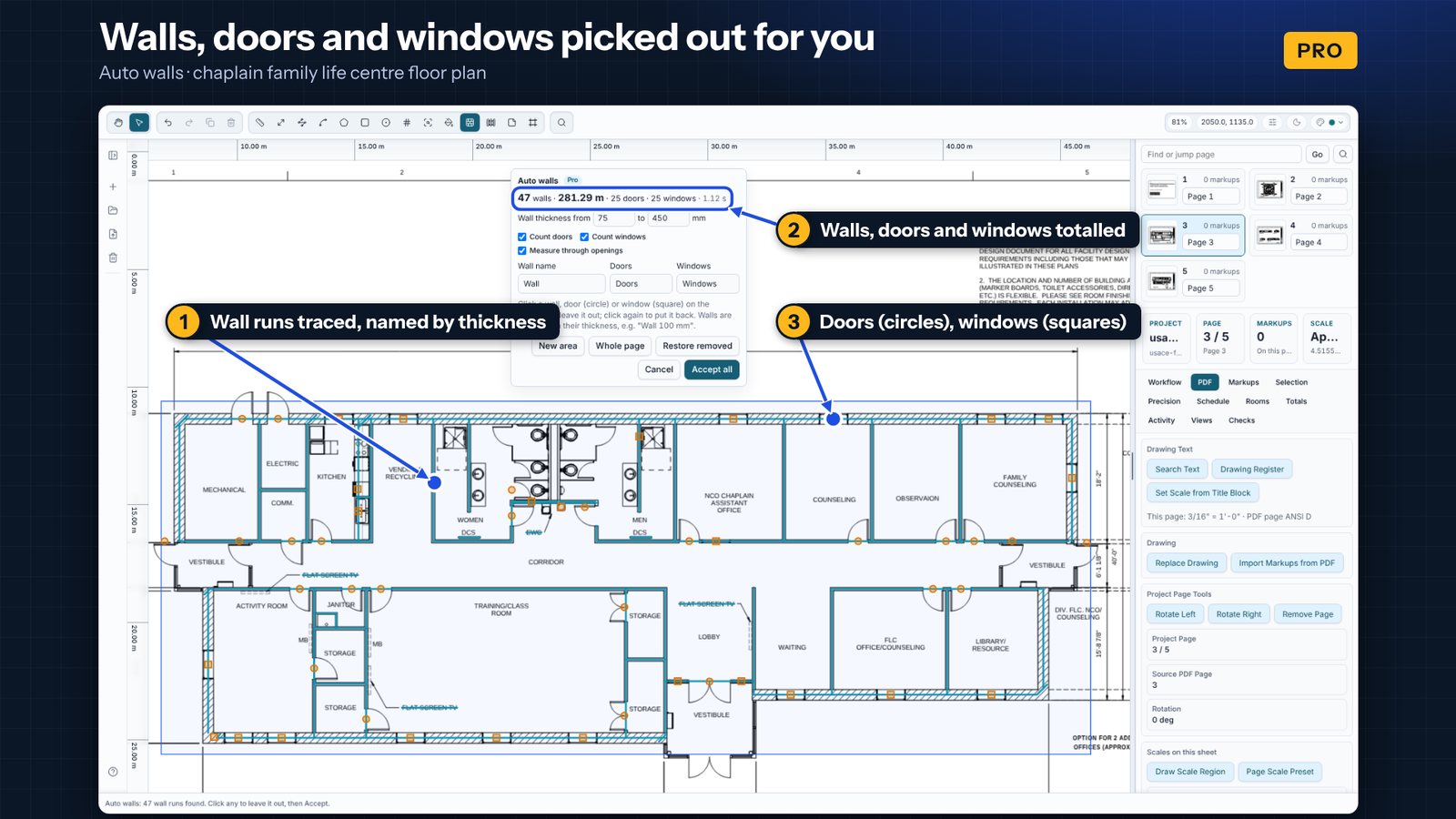

Choose Walls, set the range of wall thicknesses (75 to 450 mm suits most plans), then Whole page or Draw area. Click any wall, door or window to leave it out, then Accept all. Each wall becomes a polyline such as Wall 100 mm, and the doors and windows become counts.
Help: Tools has every option in detail.
